Steel Balustrades – Strong, Safe & Factory-Direct
Balustrades built on our proven W-profile palisade system – using hot-dip galvanised steel, glass-filled nylon brackets and stainless-steel fasteners for maximum durability.
- W-shaped pales for extra strength
- No welding – fully mechanical assembly
- Round-top finish for a clean, modern look
Balustrades Engineered Like Our Palisade Fencing

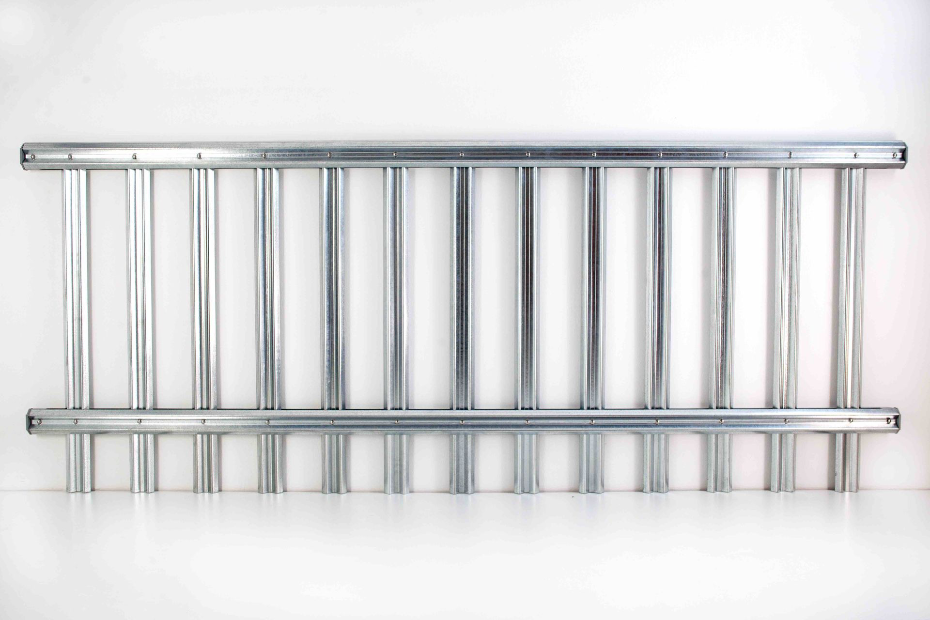

Our balustrades are manufactured in exactly the same way as our W-profile palisade panels – just in a shorter height and with a round-top rail.
Instead of traditional welded balustrades, we use:
- W-shaped steel pales, punched with the first hole 15 mm from the top, bolted through the top bearer.
- Top and bottom steel bearers, rolled and pre-punched for perfect spacing.

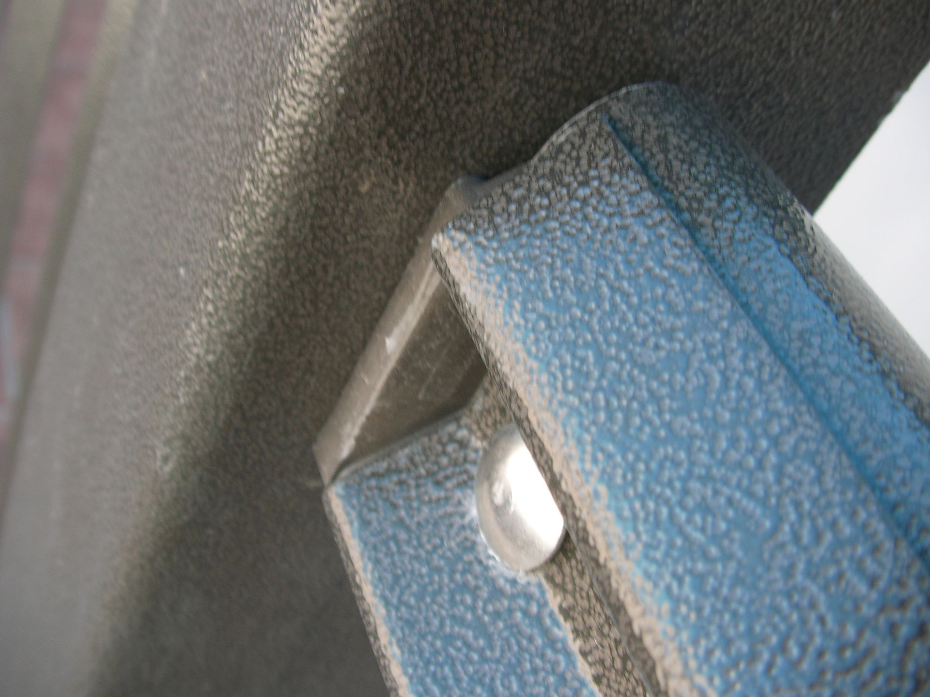

- Glass-filled nylon brackets to connect the panel to the posts – extremely strong, UV-stable and corrosion-free.
- Stainless-steel bolts, nuts and washers for every connection.
- A 25×1.6 mm galvanised round tube clamped on top of the pales and bearer to create a smooth, strong round-topfinish.
The result is a balustrade system that is straighter, stronger and more durable than conventional welded systems.
Why Our Balustrades Are Different
- No welding – ever
All panels are mechanically assembled. No weld cracks, no grind marks and no burnt paint.
- Maximum corrosion protection
Hot-dip galvanised steel (Z275), stainless fixings and nylon brackets mean no rust streaks on your walls or tiles.
- Superior stiffness
The W-profile pales and clamped round-top rail work together to create a very rigid frame, even over long spans.
- Fast, clean installation
Panels arrive fully assembled from our factory. Installers simply set out the posts, bolt the panels in place and the job is done.
- Perfect for coastal conditions
Designed for Cape Town’s harsh coastal climate – ideal for apartments, hotels and exposed balconies.
Ideal for These Projects

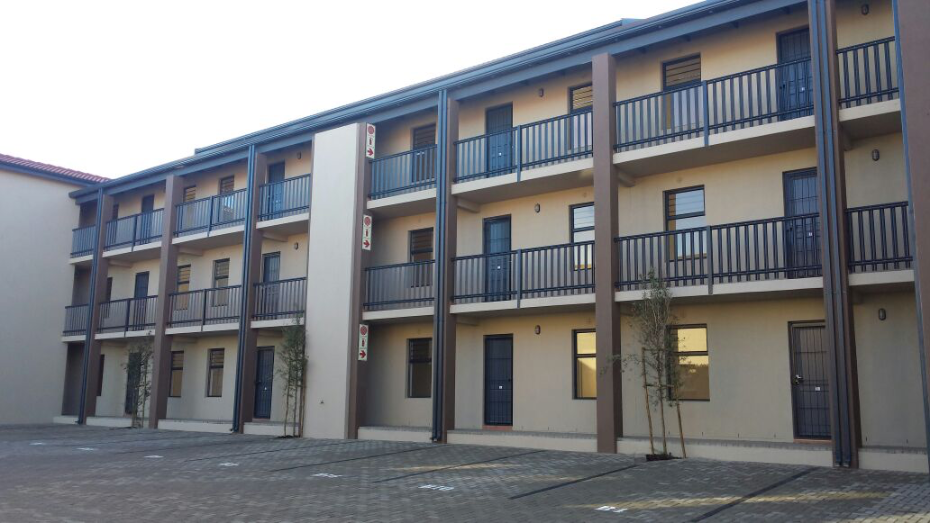

- Apartment balconies & walkways
- Duplex and townhouse developments
- Guest houses and hotels

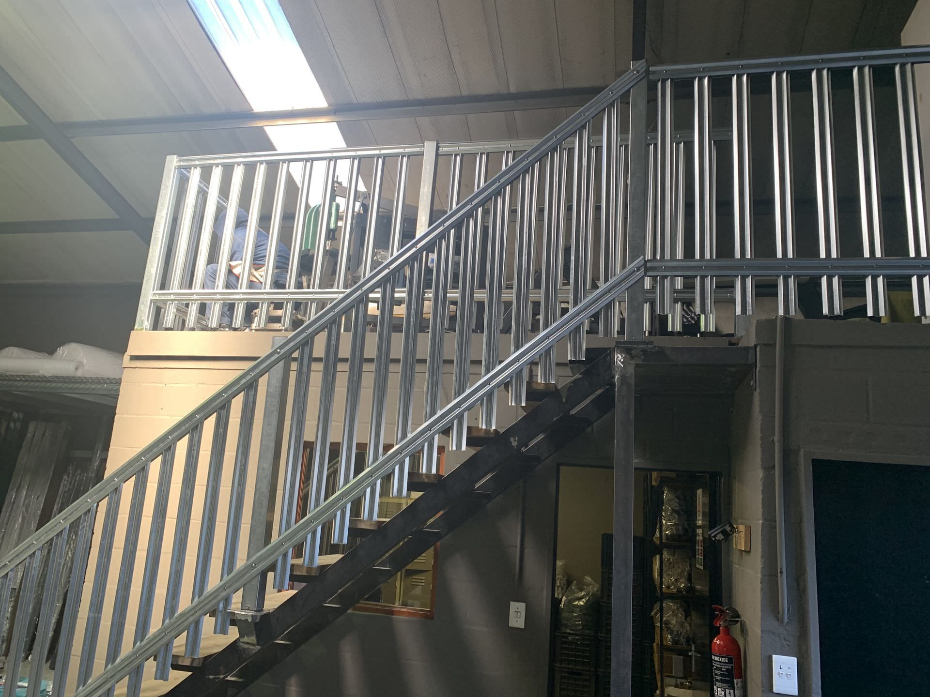

- Exterior and interior staircases
- Office and industrial platforms
- Schools, churches and community buildings
Technical Specifications
| Item | Specification |
|---|---|
| System type | Modular, mechanically assembled steel balustrade |
| Pales | W-profile steel pales, same as our palisade fencing |
| Pale top fixing | First hole 15 mm from top, bolted through top bearer |
| Bearers | Rolled steel bearers top & bottom, pre-punched |
| Top finish | 25×1.6 mm galvanised round tube clamped on top |
| Brackets | Glass-filled nylon brackets (UV-stable, high strength) |
| Fasteners | Stainless-steel bolts, nuts & washers |
| Panel height | 1.0 m – 1.2 m (custom heights on request) |
| Panel length | Up to 3 m per panel (custom modules available) |
| Finish | Hot-dip galvanised or galvanised + powder-coated |
| Mounting | Bolt-on to steel, concrete or brickwork posts |
Finishes to Match Your Building
All balustrades are supplied hot-dip galvanised as standard. For coastal and high-end residential projects we also offer:
- Powder-coating in standard colours (charcoal, black, white, green, etc.)
- Custom colours on request for large projects
- Matching palisade fencing, gates and posts so the whole site looks consistent.
Designed for Developers and Contractors
- Factory-built panels reduce time on site and labour costs.
- Consistent quality across large projects – every panel is identical.
- We supply balustrade panels, posts, brackets and fixings in one complete package.
- Installation can be done by your own team or by approved installers.
Need help with design?
Send us your balcony or walkway layout and we’ll help you plan panel lengths, post positions and quantities.
